Woodpecker Dte Implant-X Implant Motor - Dental Physiodispenser

DTE Implant-X Lighted Physiodispenser + 20:1 Implant Contra-Angle

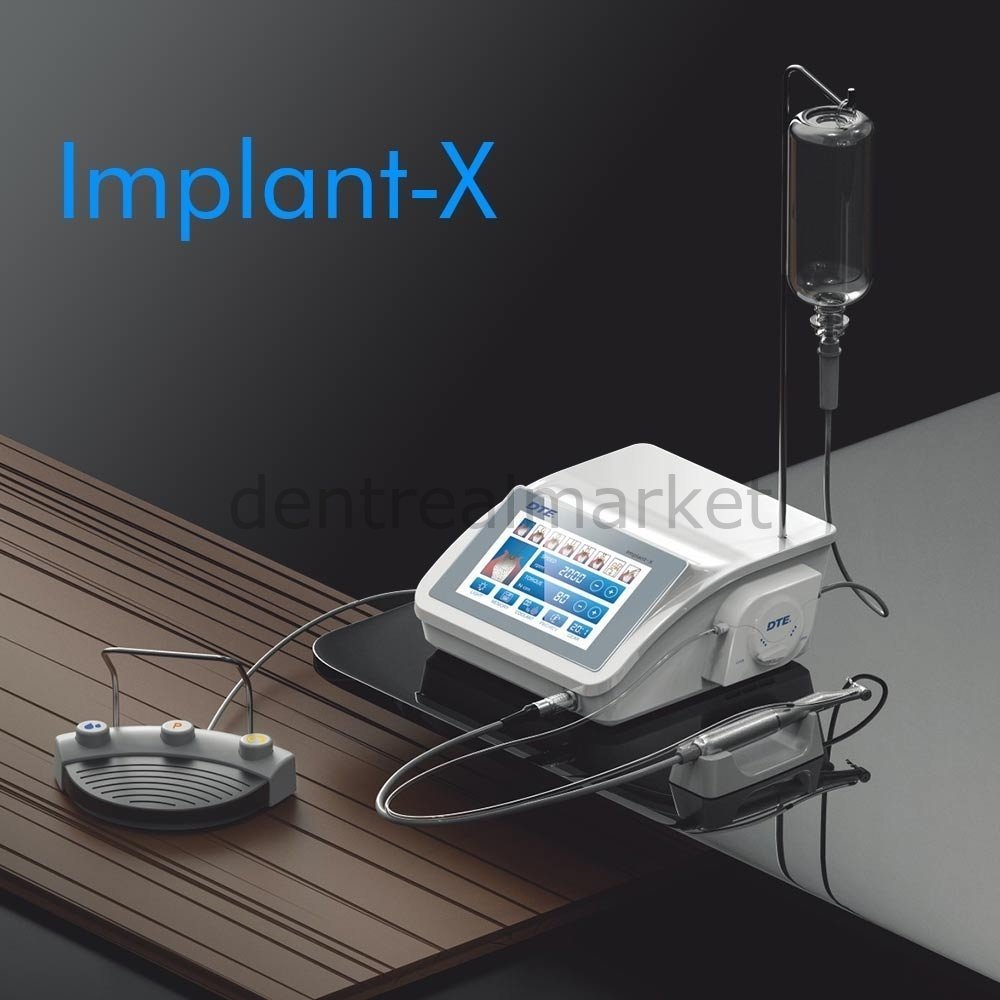

Implant-X features a precise, powerful Swiss motor: 6.2 Ncm motor torque provides 80 Ncm output torque. A preferred aid for high-precision dental implant treatment with superior quality. Notable for its quiet motor imported from Switzerland and advanced FOC control technique. Offers flexible response and stable safety.

Features

• Intuitive user interface and large color display; visual images show each implant surgery procedure
• Preset parameters eliminate setup steps
• Motor and cable autoclavable; lightweight micromotor for flexible work
• LED motor for more efficient and accurate treatment
• Strong, stable reverse angle; LED contra-angle improves visibility
• Imported advanced bearings for high performance and durability
• Glossy color touchscreen — easy to clean and safer in the treatment area
• Quiet peristaltic pump compatible with disposable oral water tubing

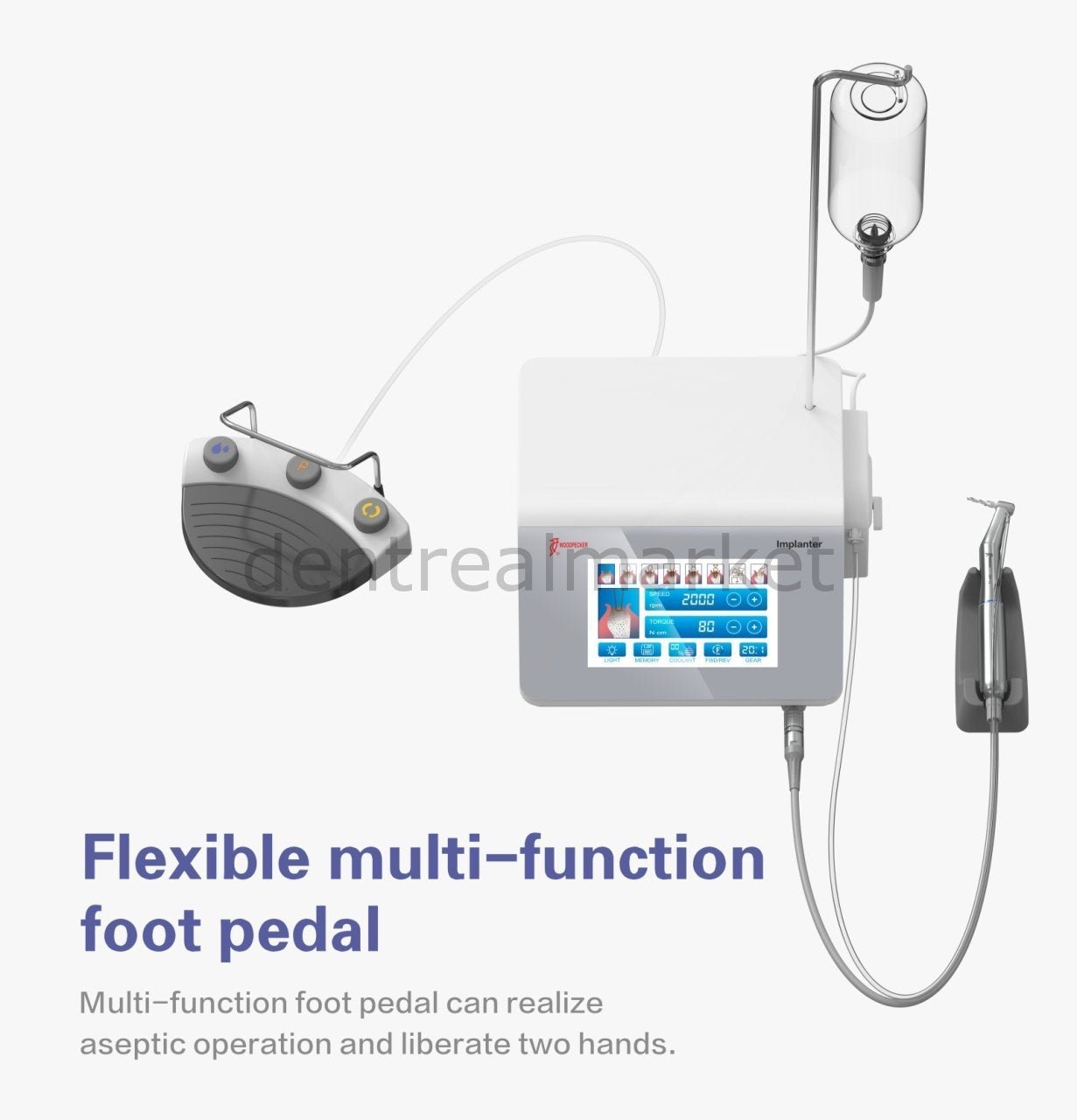

• Flexible multi-function foot pedal
• Excellent balance reducing hand fatigue in complex surgery

Technical specifications

• Speed range: 300–40,000 rpm
• Torque range: 5 N·cm – 80 N·cm
• Maximum pump output: 110 ml/min
• Main unit dimensions: 276 × 267 × 110 mm
• Motor dimensions: 23.4 mm × L 91 mm
• Motor weight: 140 g
• Power supply: AC 220 V 50/60 Hz
