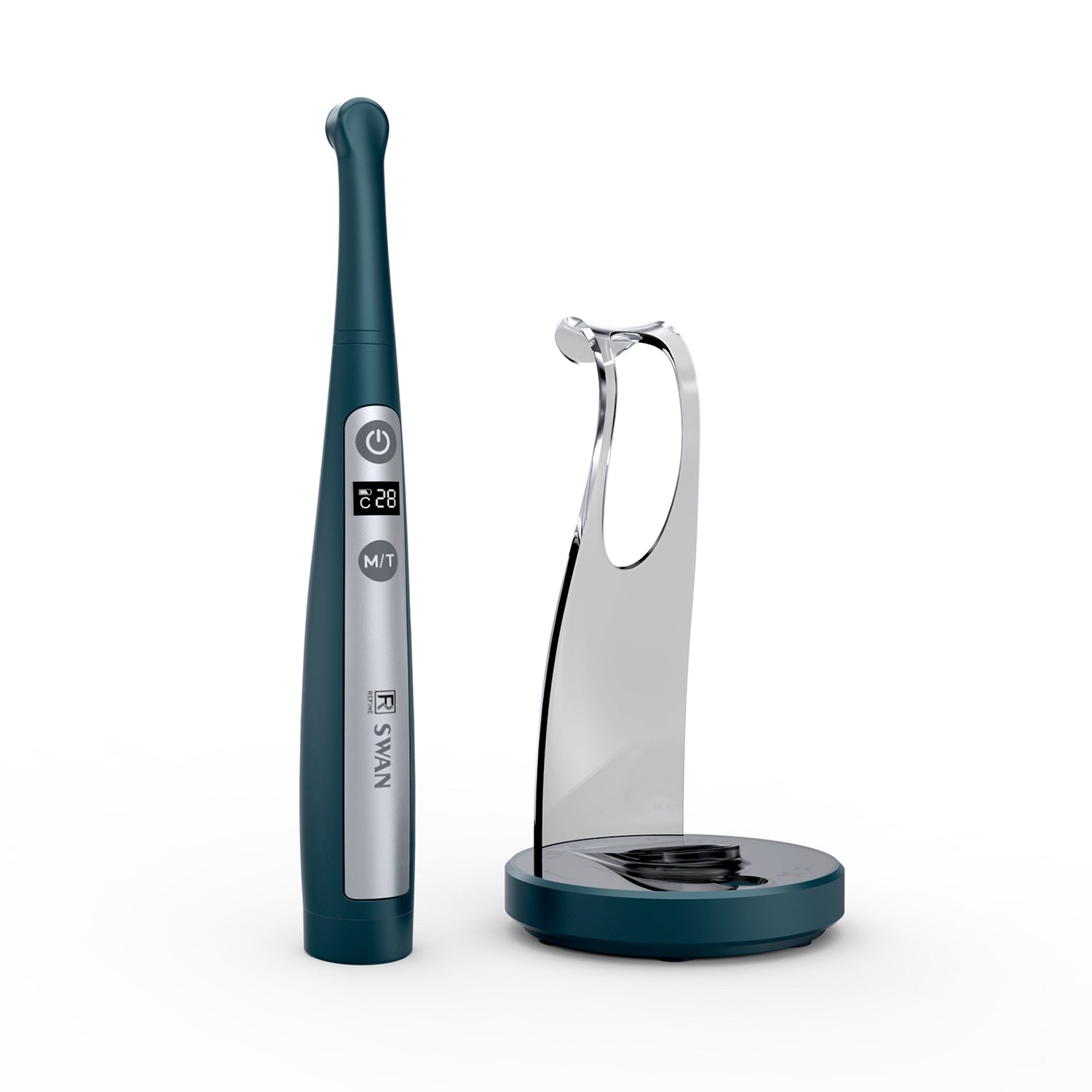

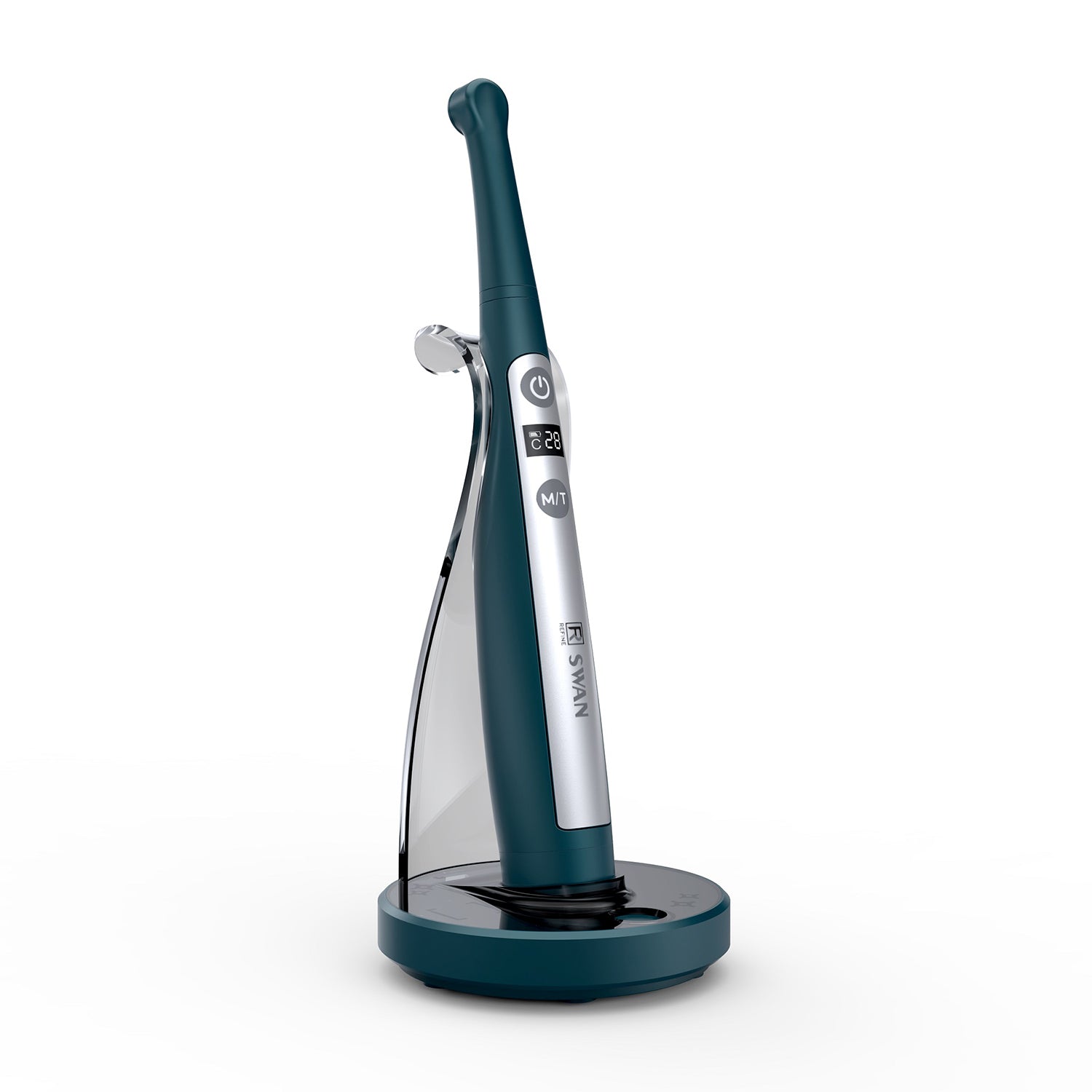

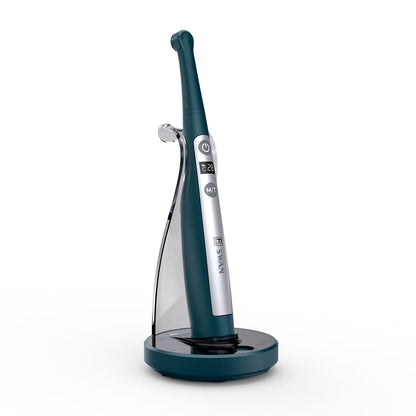

Refine Swan Polymerization Beam Filling Device

Product overview

Refine Swan broad-spectrum LED curing light for effective polymerization of most dental materials.

Features

• Broad-spectrum LED; constant-current drive
• Cordless, hygienic design
• P1 High Intensity: 2300–2500 mW/cm² — times 1 s, 3 s — for orthodontic adhesives, post & core, porcelain veneer cements
• P2 General: 1000–1200 mW/cm² — times 5, 10, 15, 20 s — for routine resin restorations
• Wavelength 385–515 nm covers CQ and newer photoinitiators (e.g. TPO peak ~405 nm) that narrow-spectrum lights may undercure

Technical data

• Input: 100–240 VAC 50/60 Hz; output 5 V DC/1 A
• Light intensity: 1000–2500 mW/cm²
• Battery: 2600 mA
