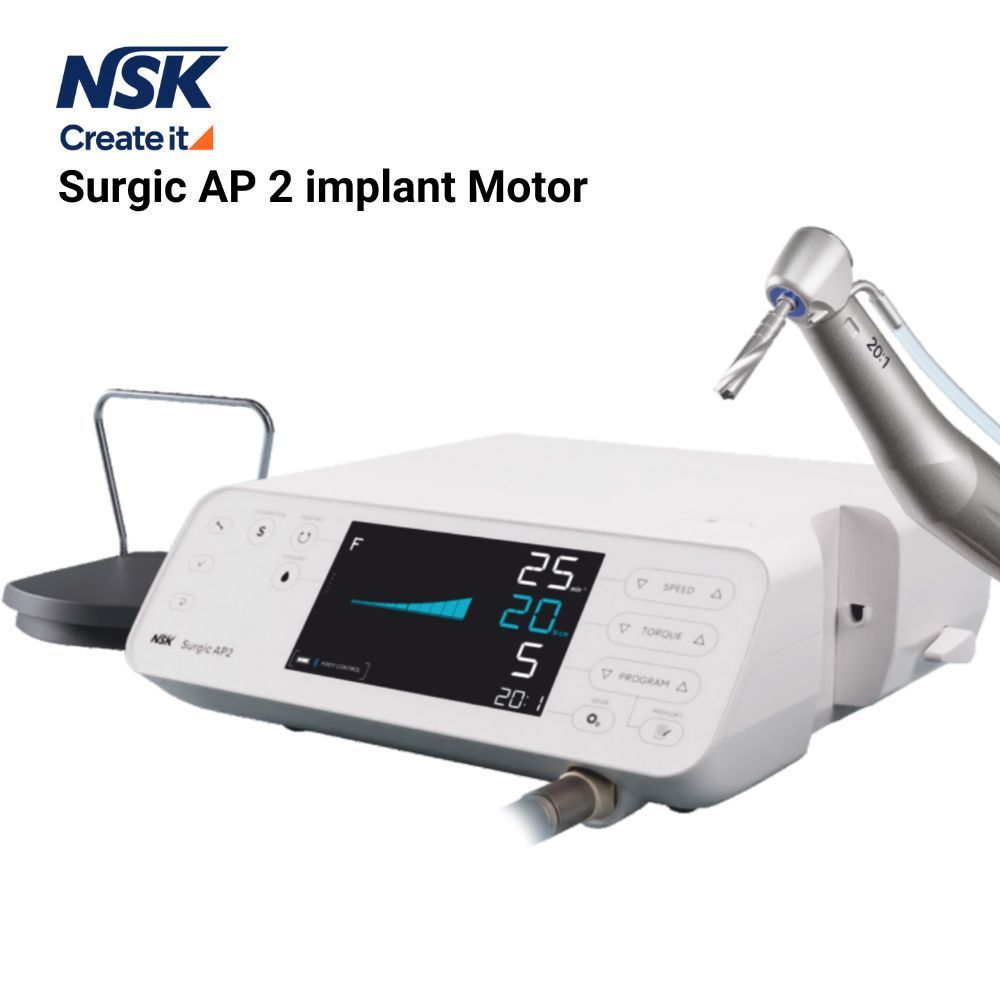

Nsk Surgic AP2 Physiodispenser Implant Motor & 20:1 Implant Contra-Angle

NSK Surgic AP2 — Oral Surgery and Implantology Motor (Without Light)

NSK Surgic AP 2 is an advanced surgical micromotor system combining precise engineering with user-friendly features.

Key features

• Compact motor with center of gravity closer to the handpiece head for easier long procedures
• Maximum torque increased from 50 Ncm to 80 Ncm

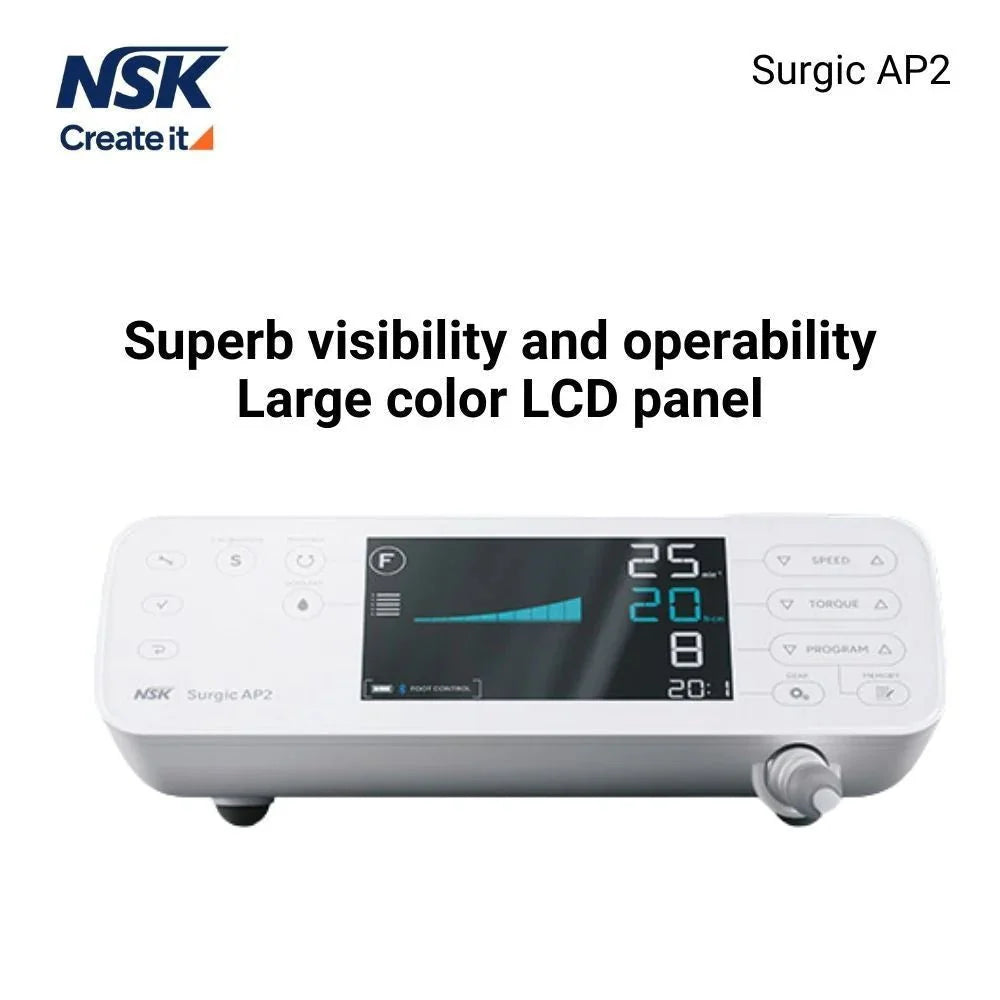

• Large high-contrast backlit LCD with adjustable brightness
• Handpiece 2 mm smaller than previous model for better access and less patient discomfort
• Quiet, smooth irrigation pump with simple hose setup
• User-friendly wireless foot control (FC-84) via Bluetooth for flexible placement

Technical specifications

• Power: AC 100-240 V, 50/60 Hz
• Max pump output: 75 mL/min
• Programs: 8 programs / implant systems
• Dimensions: W 245 mm, D 235 mm, H 90 mm
• Torque: 5-80 Ncm
• Motor speed: 200-40,000 rpm
• Light power (optical micromotor): over 32,000 LUX
• Foot control: coolant flow, PRG, forward/reverse, speed pedal
