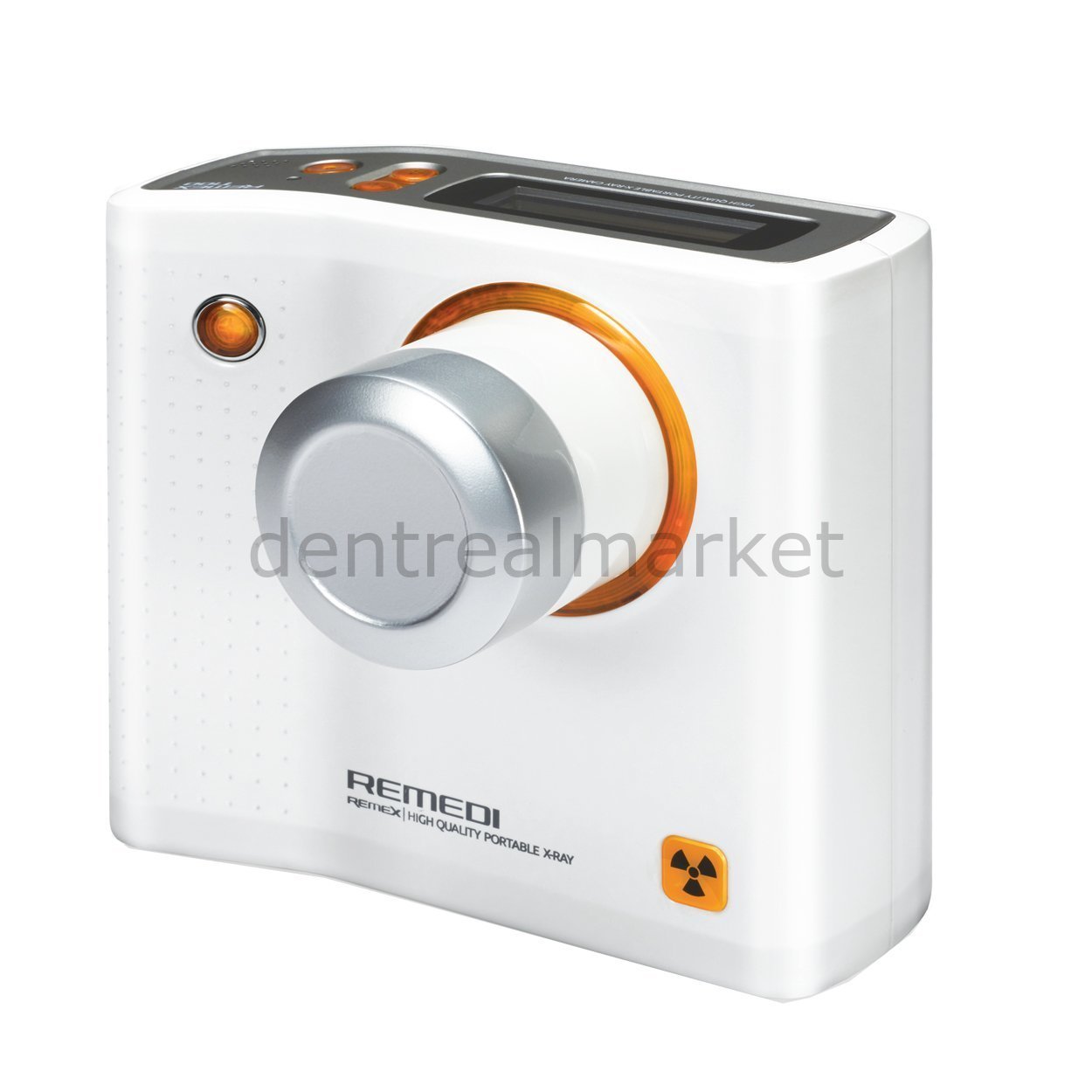

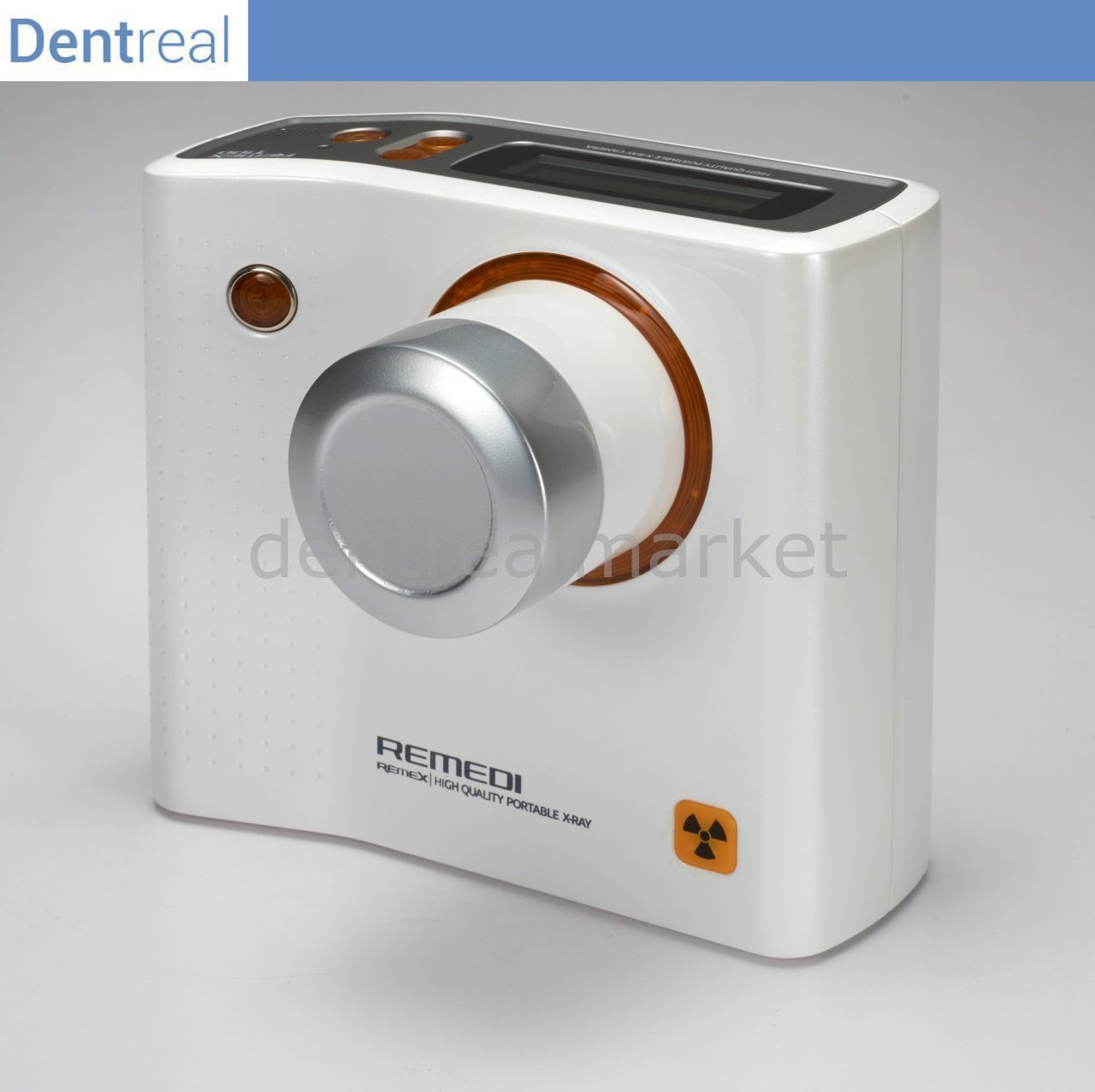

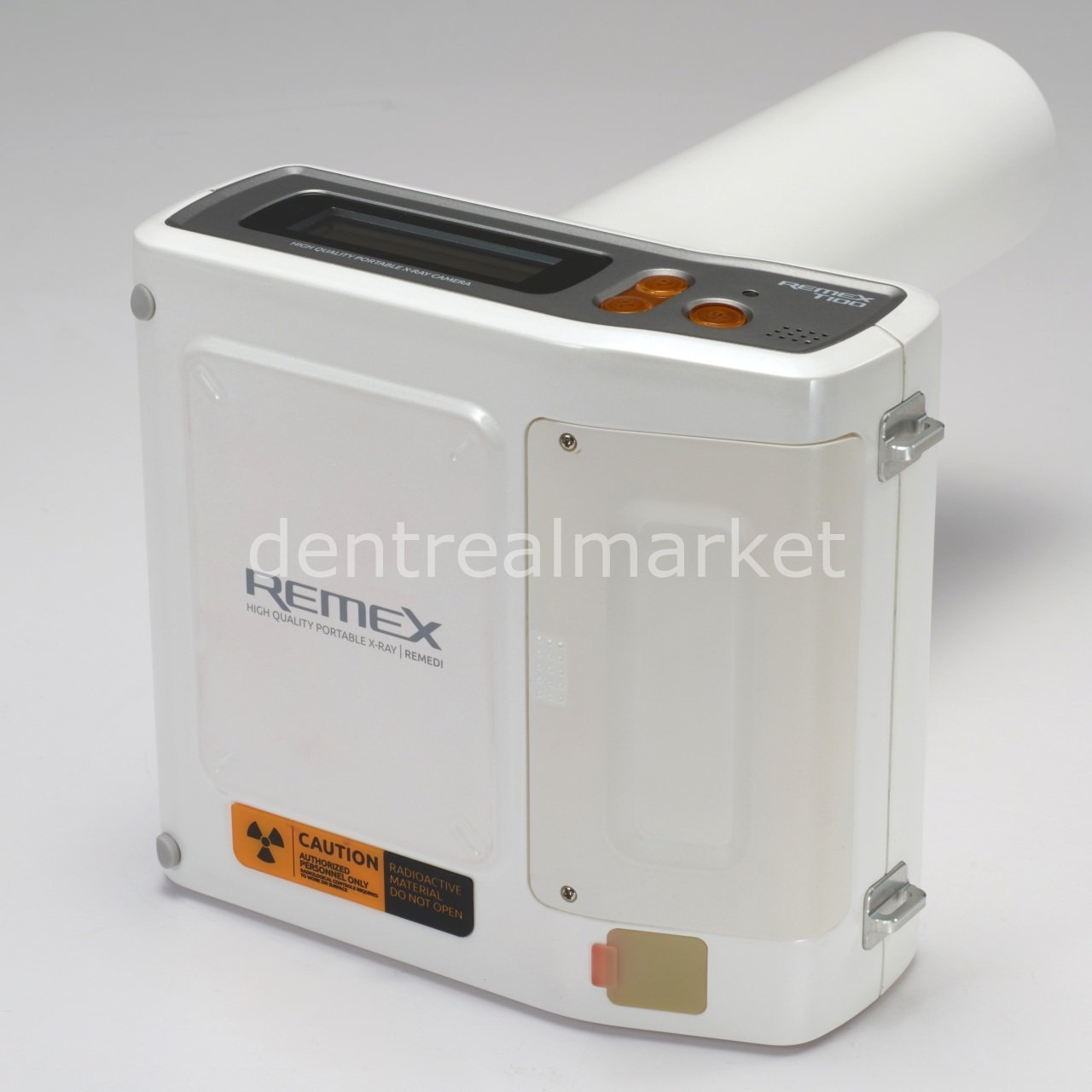

Remex-T portable handheld X-ray
REMEX-T (K) 100 portable X-ray equipment designed for trained dentists and dental technicians to produce diagnostic radiographs with intraoral image receptors as an extraoral X-ray source. Intended for use with adults, children, and pregnant patients when clinically appropriate. Owner/operator is responsible for ongoing compliance (exposure rates, leakage, beam alignment, kVp/mA calibration) and applicable regulations.
Selected specifications
- Classification: Class IIb
- Models: REMEX-T100 / REMEX-K100 (differs by X-ray tube)
- AC/DC adapter: input 100–240 Vac 50/60 Hz 1.5 A; output 12.6 Vdc 1.5 A
- Rechargeable battery: 11.1 Vdc, 1500 mAh
- Tube voltage: 70 kV (fixed); tube current: 2 mA (fixed)
- Exposure time: 0.01–1.3 s
- Focal spot: 0.4 mm (IEC 60336)
- Expected service life: 5 years
Cleaning: Unplug adapter and power off before cleaning. Use only non-alcohol disinfectant on a wipe or cloth. Do not subject the unit or adapter to sterilization procedures.
