Polymax 5 - Pressure Acrylic Furnace - Pressure Polymerization Unit

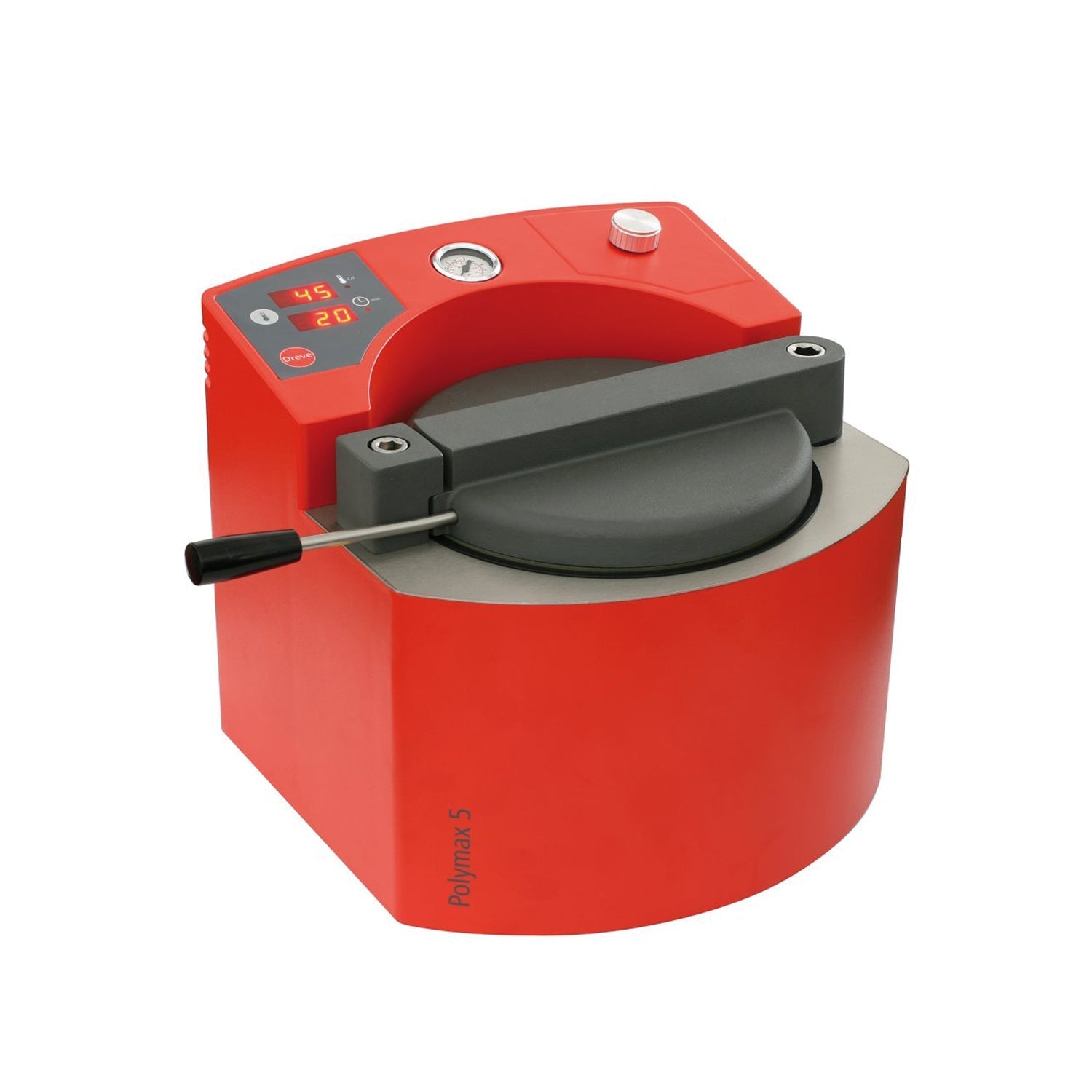

Polymax 5 Pressure Polymerization Unit

Description:
The Polymax 5 is a pressure polymerization unit with a maximum temperature range of 95°C (203°F). It operates with an infinitely variable pressure adjustment between 3 and 6 bar. Thanks to its large pressure chamber volume, it can carry out the polymerization of large quantities of items, such as ear molds.

Technical Specifications:

• Dimensions: Height 310 mm x Width 345 mm x Depth 385 mm
• Weight: 16.9 kg
• Power consumption: 900 watts, 115/230 V
• Temperature range: Maximum 95°C
• Pressure chamber diameter: 220 mm
• Pressure chamber depth: 174 mm
• Pressure: Minimum: 3 bar, Maximum: 5 bar

The large pressure pot of this unit is ideal for handling large-volume tasks and provides high performance for various polymerization processes.
