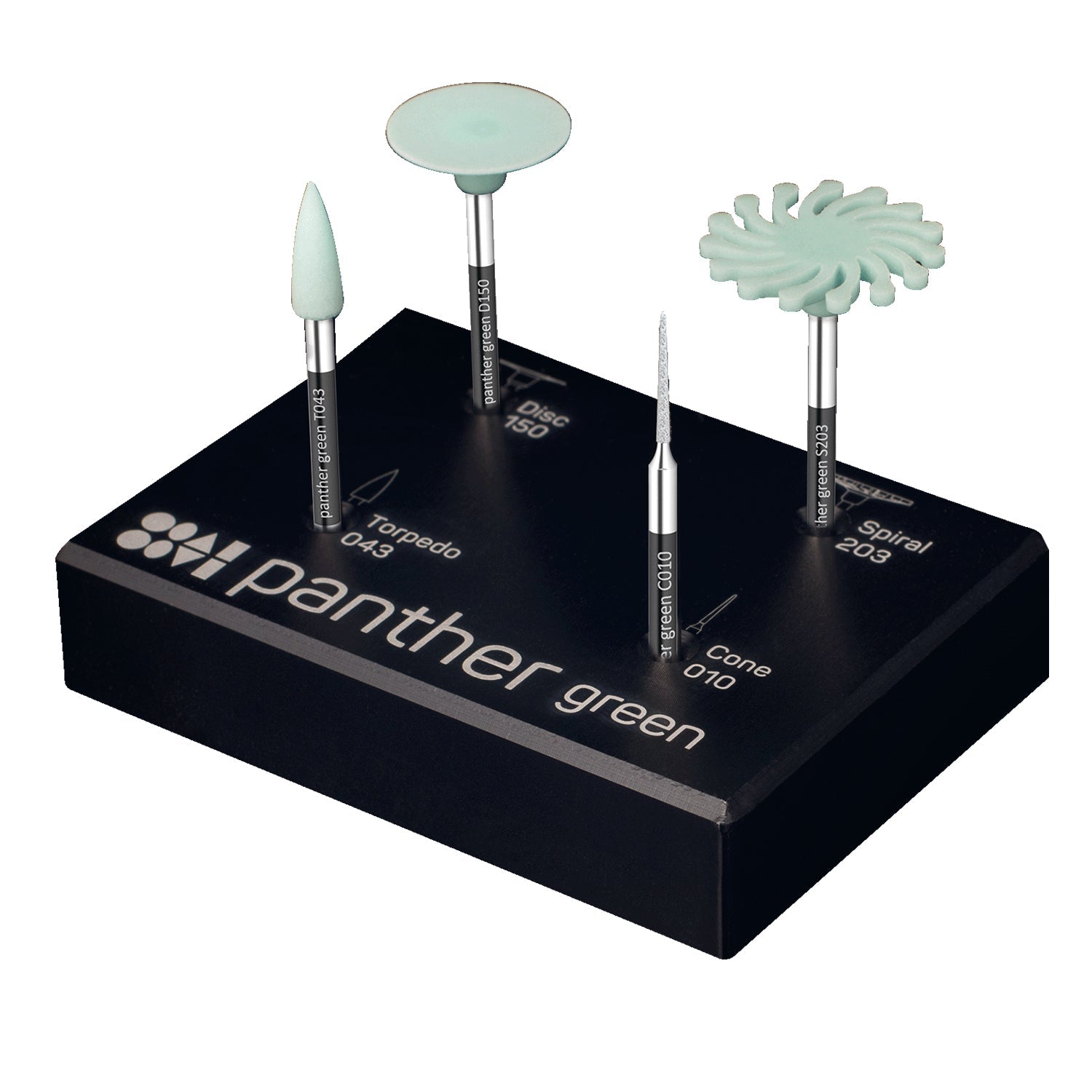

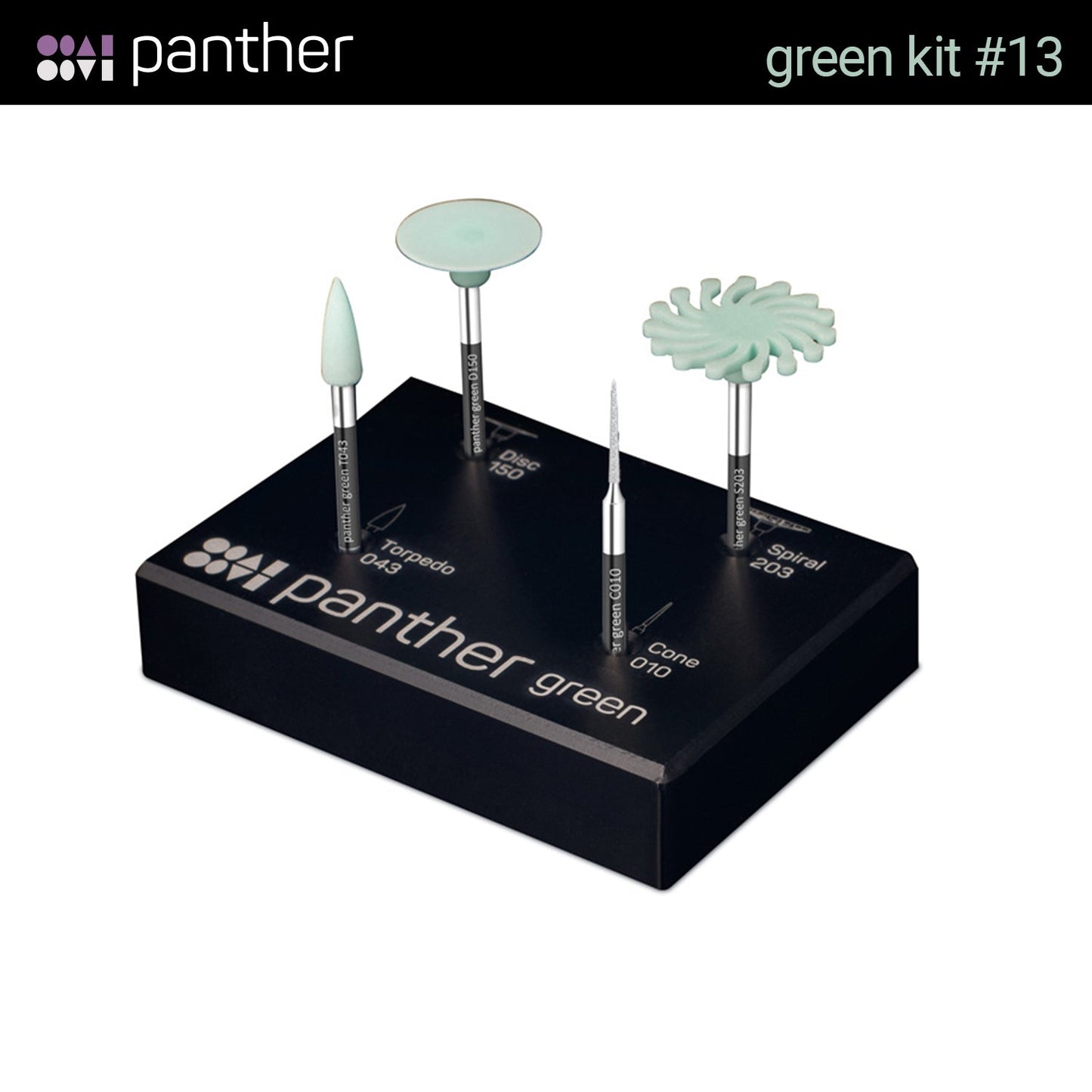

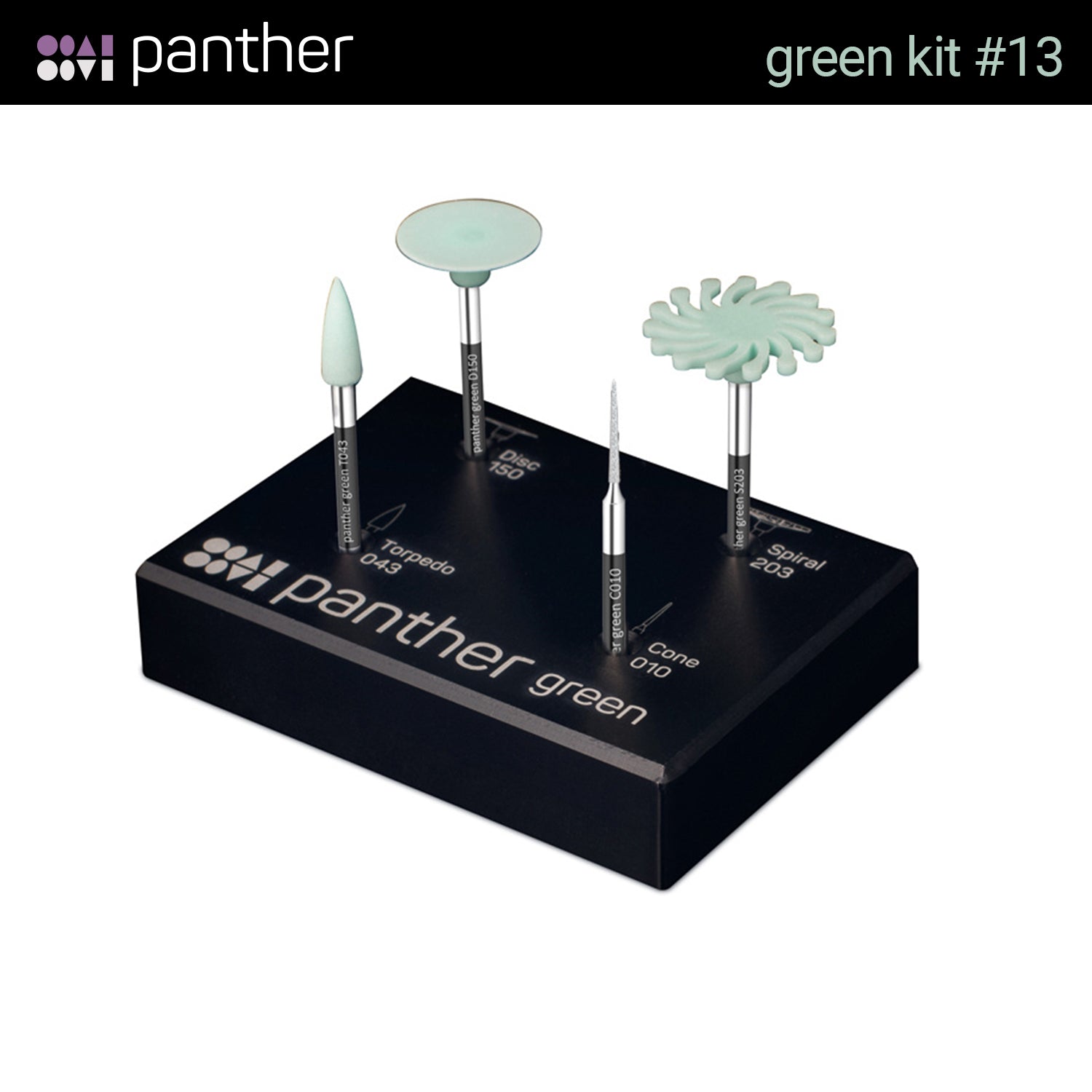

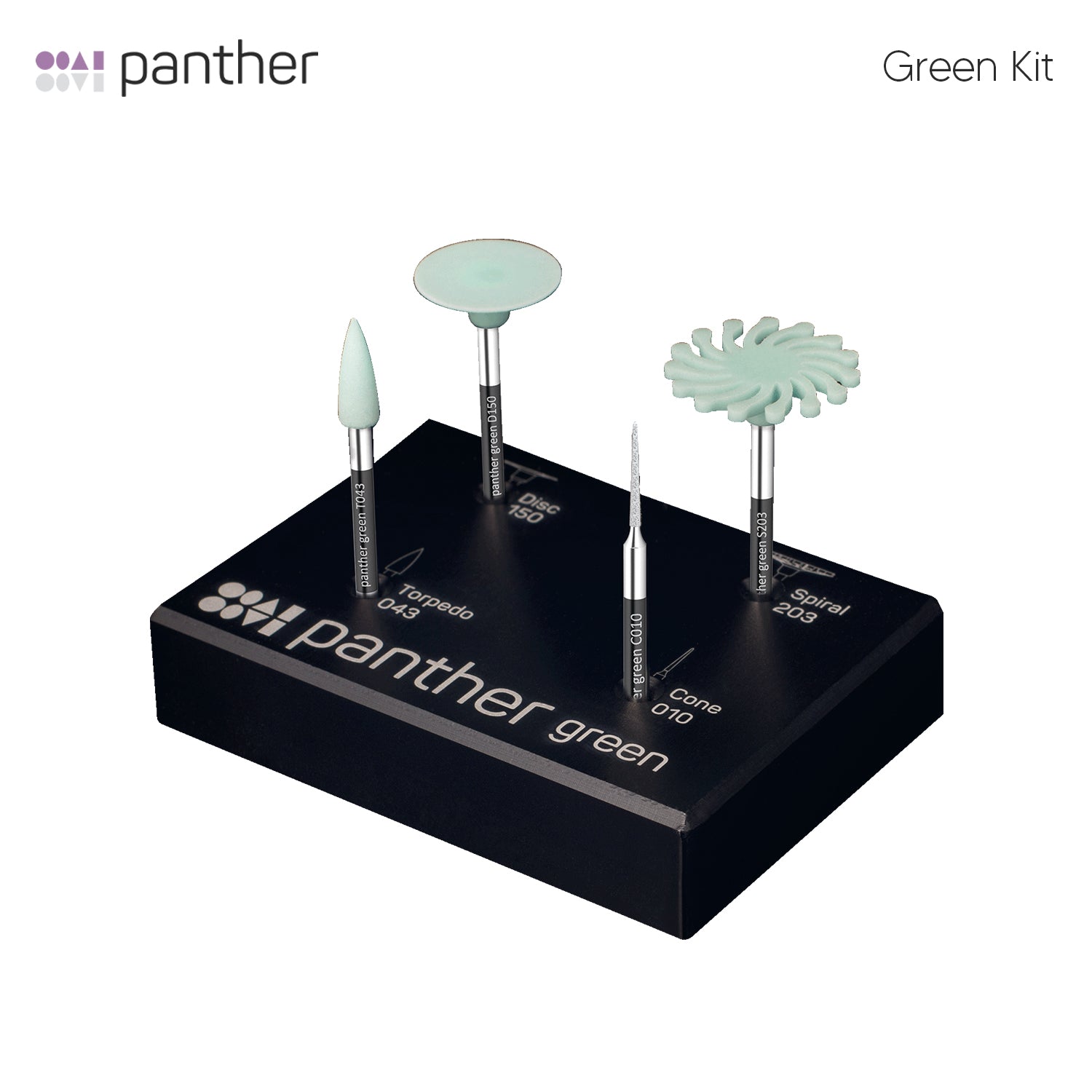

Panther Green Pre-Sintered Zirconium Machining Kit #13

Panther-Green Series: The Ideal Processing Solution for Pre-Sinter Zirconium Oxide

Processing zirconium oxide before sintering (in the green state) is a critical stage for successful use of this material. However, extreme care is required at this stage because the CAD/CAM milled structure has low hardness and incorrect processing can cause irreversible damage.

Any contamination (such as hand oil, incorrect rotary instruments or foreign particles) can significantly affect the material properties of zirconium oxide.

The new Panther-Green series consists of specially developed rotary instruments and enables safe, precise and efficient processing of zirconium oxide. It offers high reliability in your daily laboratory work.

Advantages of the Panther-Green Series

• Controlled abrasion and precise contouring
• Excellent surface roughness with superior zirconium oxide gloss

Panther-Green Series Products and Technical Specifications

Panther Green Spiral 203 – Creating natural surface textures, incisal edges and wavy effects

• Grit (particle size): Medium
• Dimensions: Ø 20.3 x 1.2 mm
• Shank type: 104-HP
• Speed: Optimal 6,000 rpm, Maximum 20,000 rpm

Panther Green Disc 150 – Gentle separation of interdental areas

• Grit (particle size): Medium
• Dimensions: Ø 15 x 0.3 mm
• Shank type: 104-HP
• Speed: Optimal 6,000 rpm, Maximum 20,000 rpm

Panther Green Torpedo 043 – Sharp lines and precise shaping

• Grit (particle size): Medium
• Dimensions: Ø 4.3 x 12 mm
• Shank type: 104-HP
• Speed: Optimal 6,000 rpm, Maximum 20,000 rpm

Panther Green Cone 010 – Creating the finest anatomical details

• Grit (particle size): Medium
• Dimensions: Ø 1.1 x 11 mm
• Shank type: 104-HP
• Speed: Optimal 25,000 rpm, Maximum 40,000 rpm
