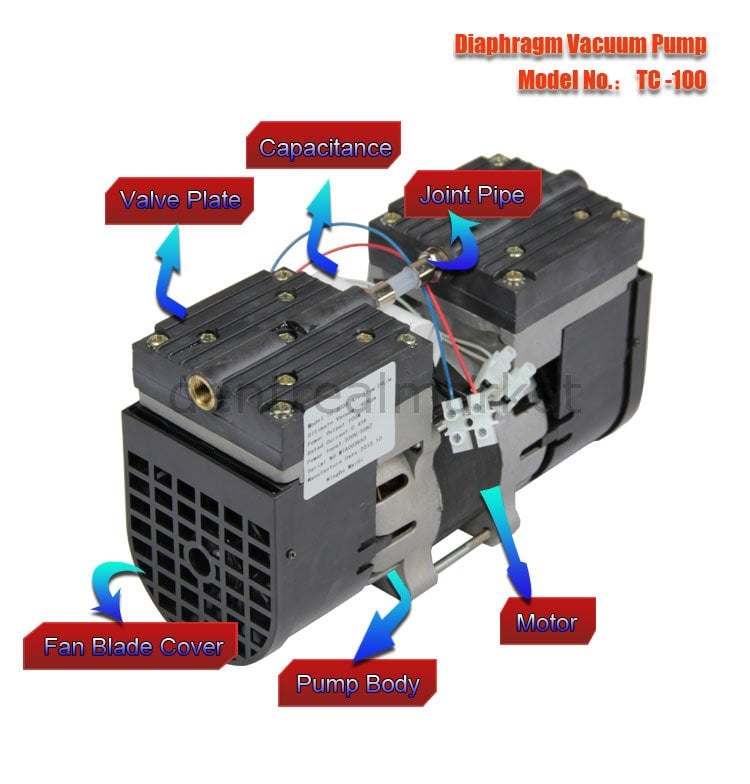

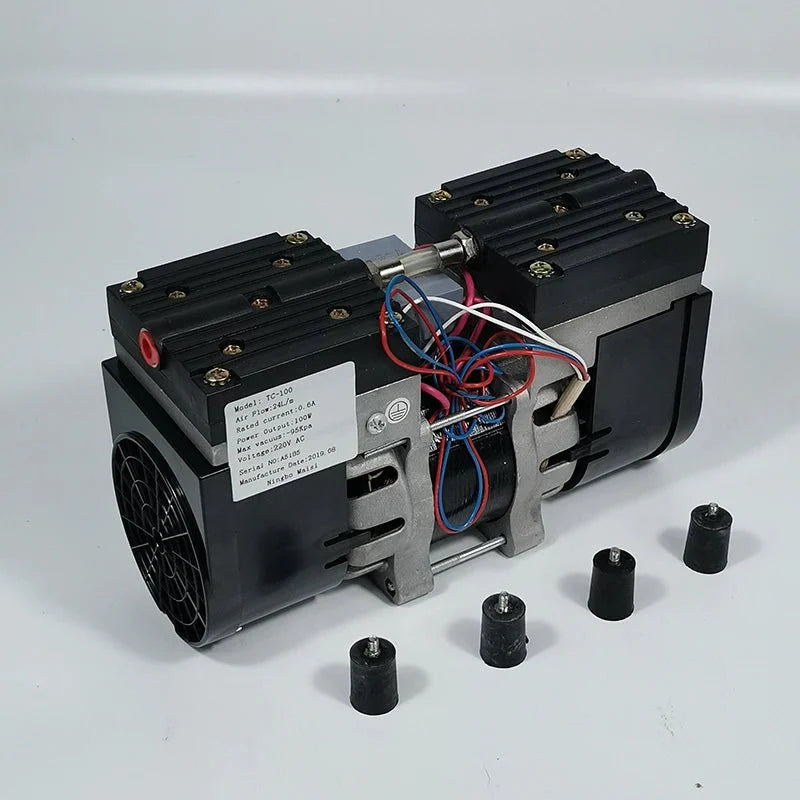

TC-100 Vacuum Pump For Autoclave - 220V
TC-100 Vacuum Pump For Autoclave - 220V
Regular price
$ 300.00
Regular price
Sale price
$ 300.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Specifications
| Model Number | TC-100 |
| Flow : | 28L/min |
| Max.vacuum : | -950mbar |
| Performance Data | |
| Head configuration: | Vacuum |
| Voltage/frequency: | 220V 50HZ/110V 60HZ |
| MAX No-load flow: | 28L/min |
| Max power: | 100W |
| Max current: | 0.45/0.9A |
| Max vacuum : | -950mbar |
| Inlet /outlet diameter: | G1/8" |
| Speed: | 1400RPM |
| Net Weight: | 3.5KG |
| Motor Data | |
| Motor insulation class: | F |
| Thermal swich: | YES(140℃) |
| Line lead wire color: | Blue/red,20AWG / Brown/red,20AWG |
| Head Data | |
| Head material: | PP |
| Membrane material | EPDM |
| Valve material: | Silicone |
| Operating temperature: | 0-40℃ |
