Mobiloskop S Microscope
Mobiloskop S Microscope
Regular price
$ 2,773.00
Regular price
Sale price
$ 2,773.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability

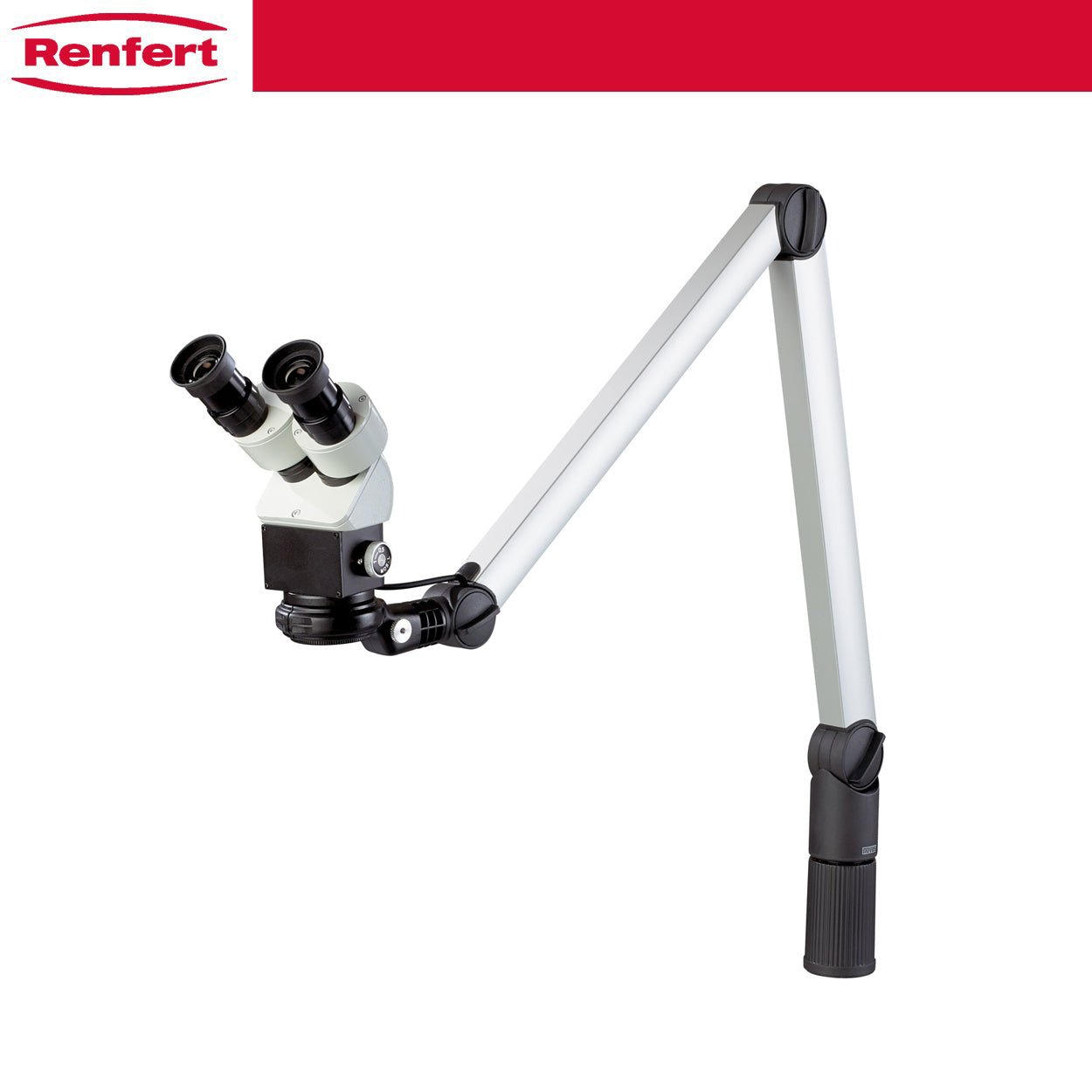

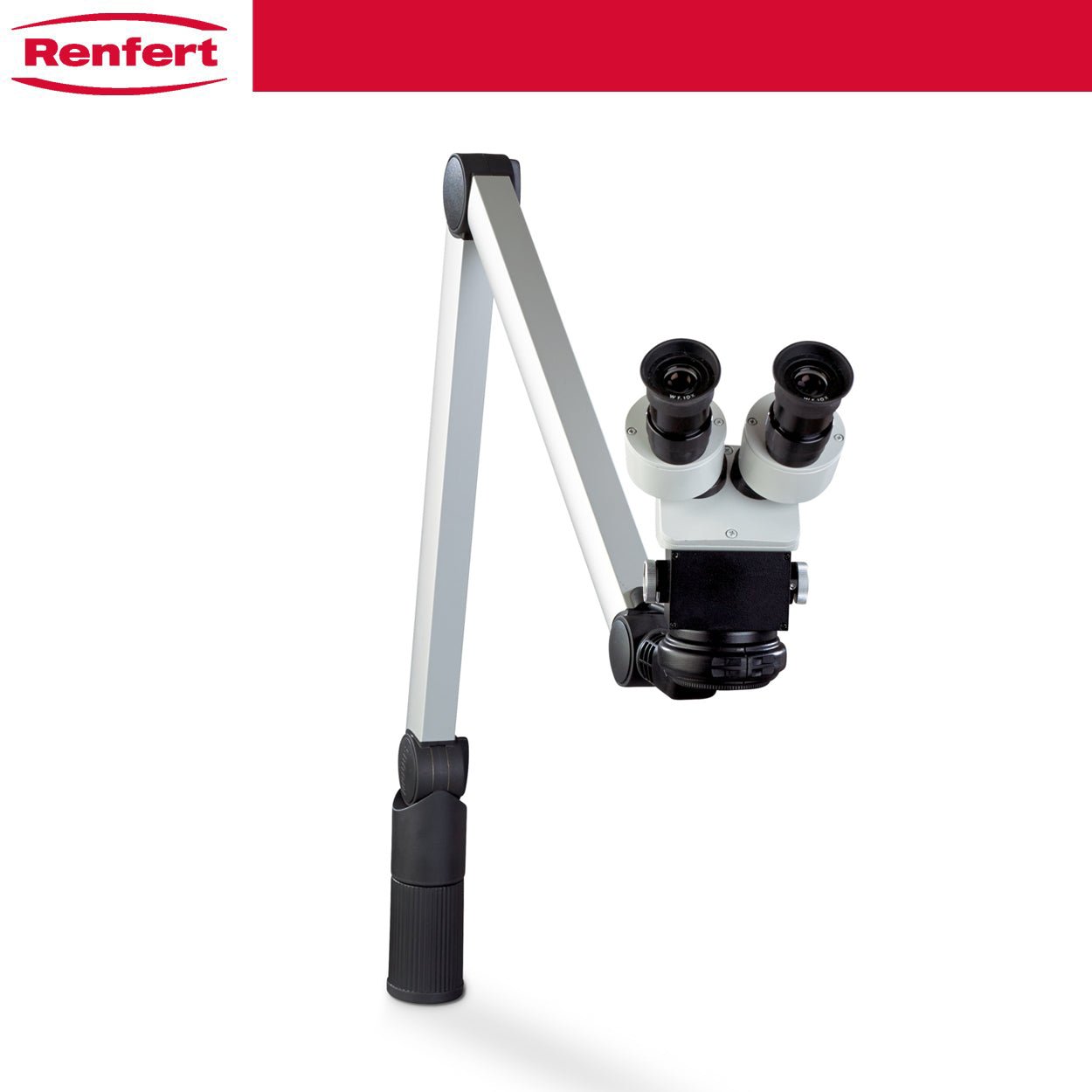

Mobiloskop S Microscope
One microscope for up to 4 workplaces! The 360° swivel-mounted support arm allows a single microscope to be utilized from several workplaces for detail control and precision work.
Advantages
- 5 and 10 times magnification provides maximum precision.
- Distortion-free coupled with uniform sharpness in the entire viewing field.
- Large viewing field with a high depth of focus and marginal definition.
| Stock Code | 22000400 |
|---|---|
| Weight (incl. swivel arm) | 1.8 kg 4 lbs |
| Technology | analog |
| Magnification | 5 x |
| Light beam (angled) | 45 ° |
| Field of vision Ø | 44 mm 1.734 " |
| Focussing depth | 22 mm 0.867 " |
| Action radius of swivel arm | 850 mm 33.5 " |
| Table top thickness (with universal clamp) | 18 - 74 mm 0.71 - 2.92 " |
| Recommended working distance from the screen | 150 mm 5.9 " |
| Mode | 2D |
