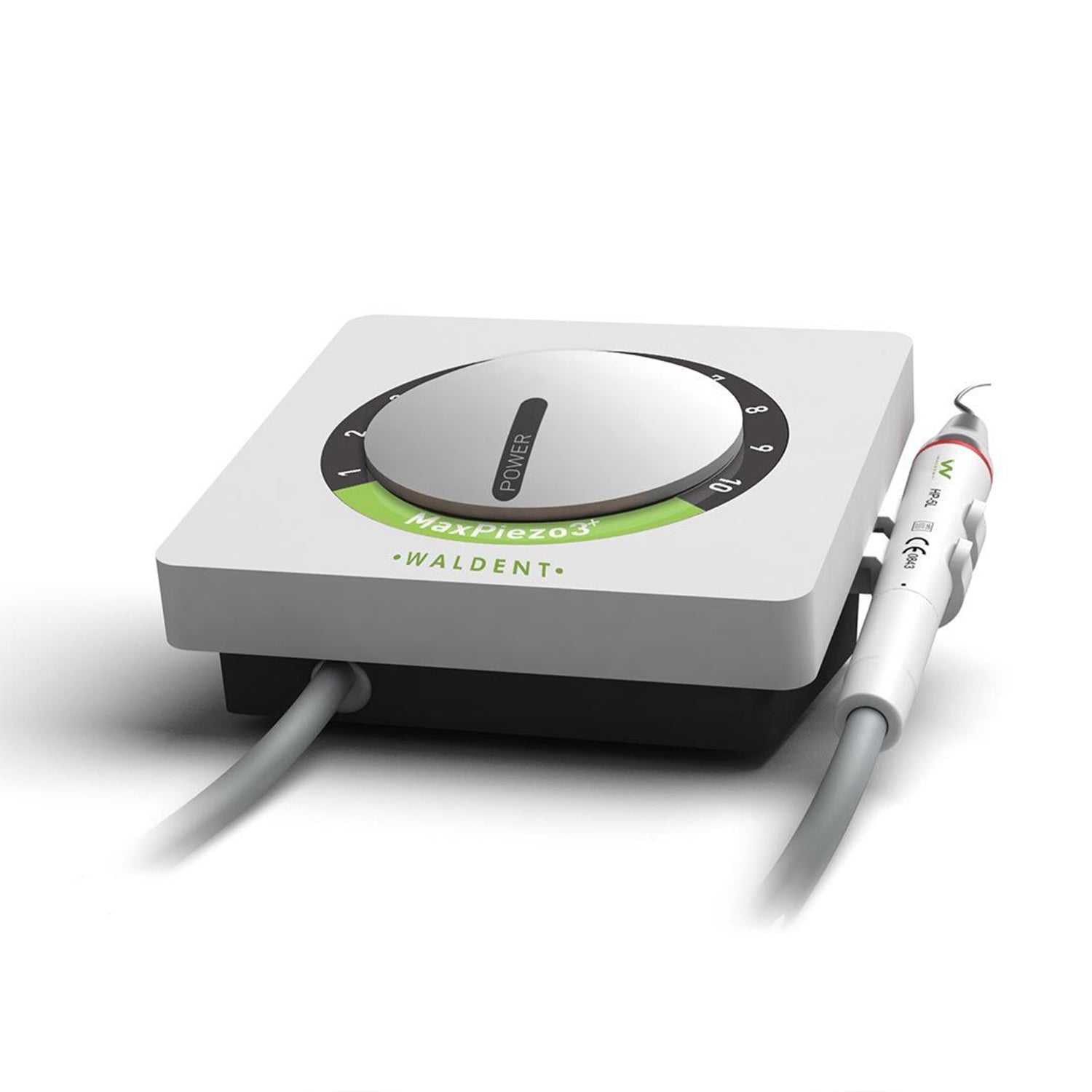

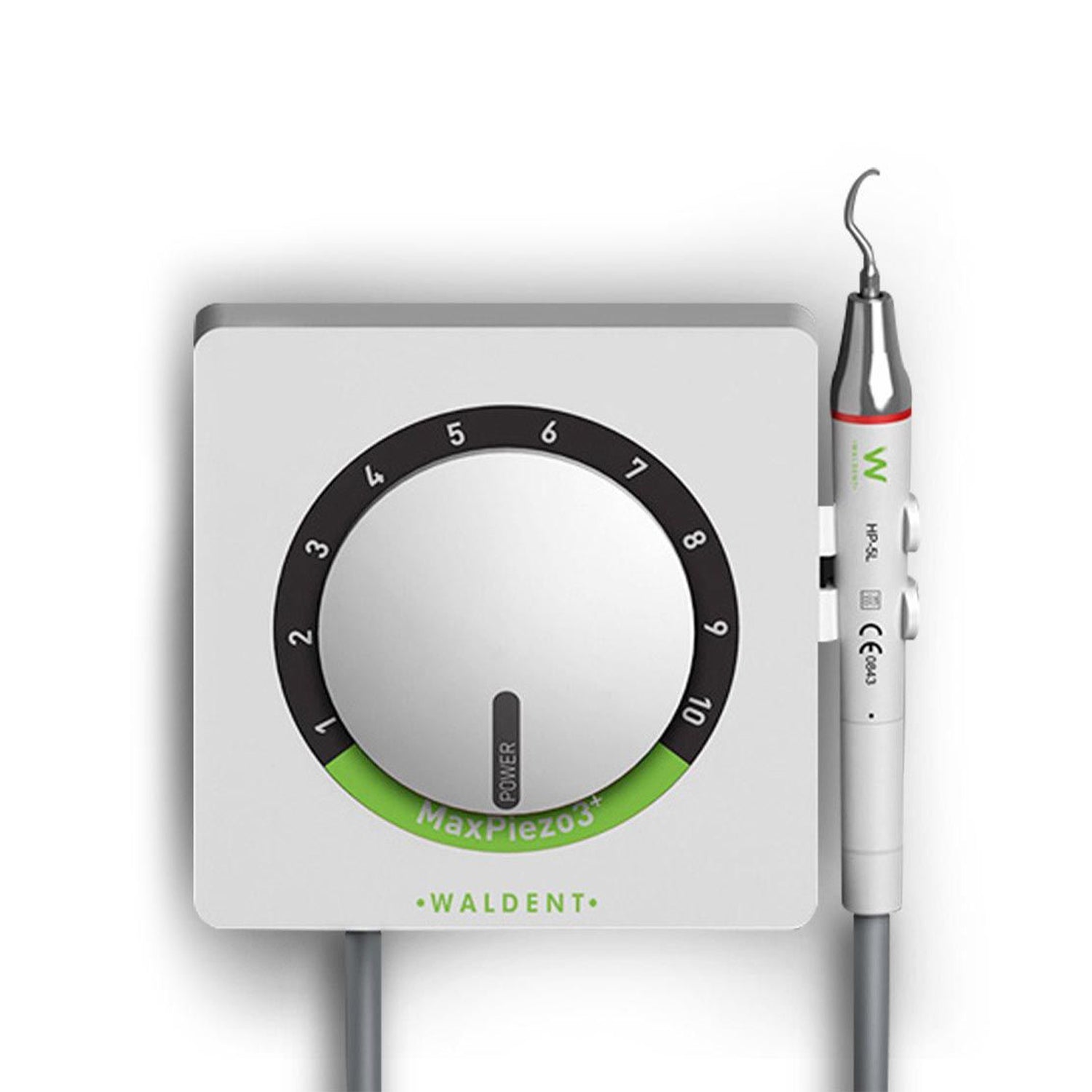

Refine MaxPiezo 3+ LED Ultrasonic Cavitron Device with Light

MaxPiezo 3+ LED ultrasonic scaler — lighted

Max Piezo 3+ LED Ultrasonic Scaler is a piezoelectric dental ultrasonic scaler used to rapidly remove calculus and plaque from the tooth surface. Scaling tip vibrates in the 20–45 kHz range (20,000 to 45,000 vibrations per second); optimum frequency is between 18 kHz and 32 kHz.

Features

• Compact design — easy to place
• Precise and gentle application — minimal sensitivity and discomfort
• Handpiece does not heat — no heat buildup at the tip during long use
• Autoclaveable handpiece
• Wide power range for different clinical applications
• Fine water spray without excessive spraying on the patient

Areas of use

• Removal of supragingival calculus and stubborn stains
• Subgingival cleaning: calculus, biofilm, and endotoxins from root surface; biofilm from sulcular surface
• ANUG cases and procedures before oral surgery
• Removal of orthodontic cement (debonding)
• Removal of excess restorations

Technical specifications

• Model: Max Piezo 3+
• Power input: ~220 V 50 Hz / ~115 V 60 Hz
• Main unit input: 24 V 50 kHz 1.3 A
• Frequency: 28 kHz ±30 kHz
• Water pressure: 0.1–5 bar (0.01–0.5 MPa)
• Package size: 375 × 305 × 120 mm
• Weight: 2.4 kg

Package contents

• 1 pcs ultrasonic scaler unit
• 1 pcs LED lighted handpiece
• Instructions for use
• Scaler tips: 2× G1, 1× G2, 1× G4, 1× P1
