W&H Dental Implantmed Plus Physiodispenser & Non-Lighted Contra Angle & Cable Pedal

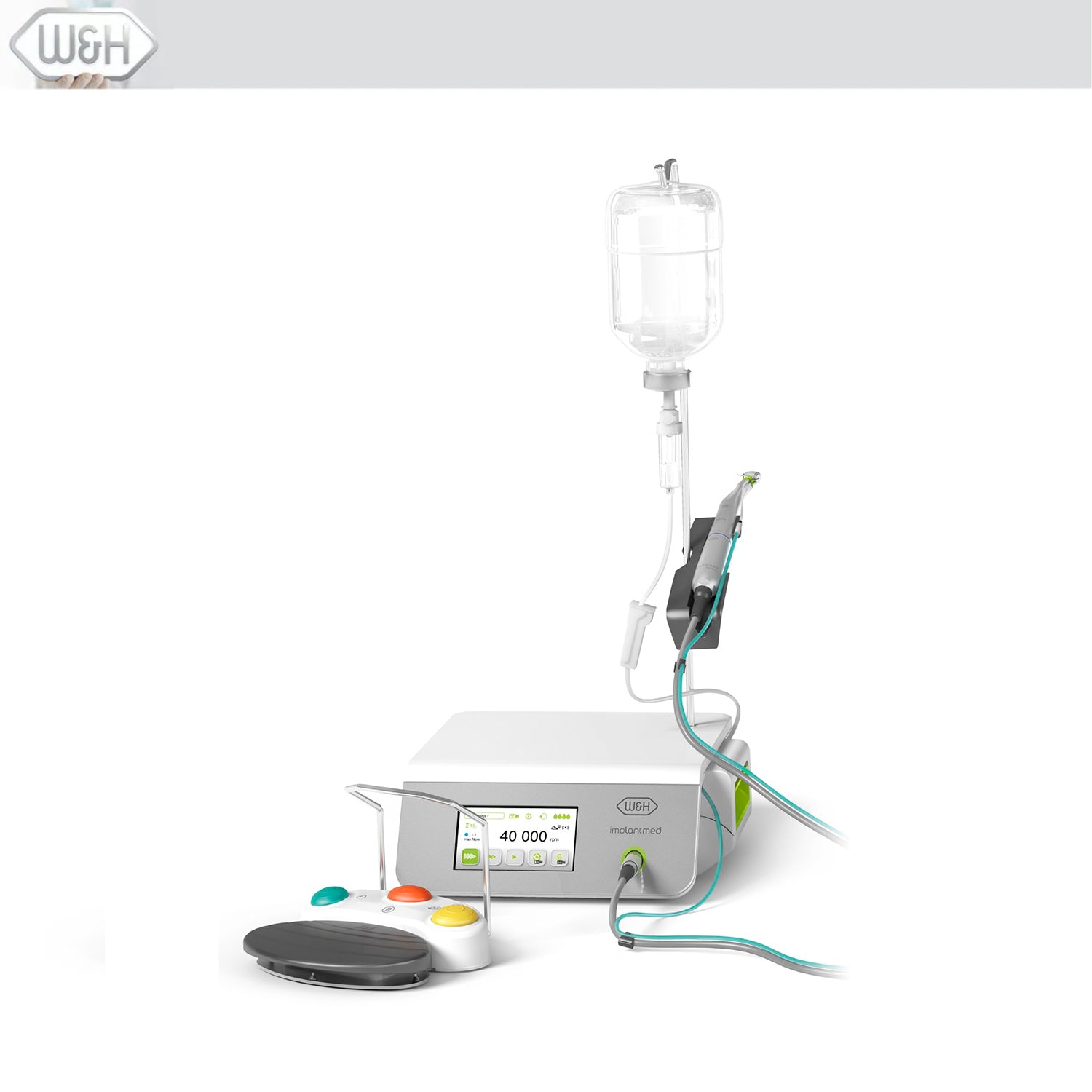

W&H Implantmed Plus — Physiodispenser with Non-Light Contra-Angle & Wired Pedal

Implantmed is designed for oral surgical procedures in implantology and maxillofacial surgery with high precision. The unit features an intuitive user interface, color touchscreen with glass surface, and improved treatment safety for clinician and patient.

Key advantages

• Intuitive user interface
• Safe torque control and measurable implant stability
• Ultra-short, powerful electric motor
• Updated pump design
• Foot control options including wireless (S-NW) and wired (S-N2)

Technical highlights

• Variants: SI-1023 (230 V), SI-1015 (120 V), SI-1010 (100 V)
• Frequency 50/60 Hz; max. power consumption 170 VA
• Max. torque at motor: 6.2 Ncm
• Motor speed range at rated voltage: 200–40,000 rpm
• Coolant flow at 100%: min. 90 ml/min
• Dimensions (H x W x D): 100 x 262 x 291 mm
• Max. mechanical output power: 80 W

Pack contents

WI-75 E/KM implant contra-angle + SI-1023 Implantmed motor. Warranty: 12 months.
