W&H Dental Implantmed Plus Led Physiodispenser & Illuminated Contra Angle & Cable Pedal

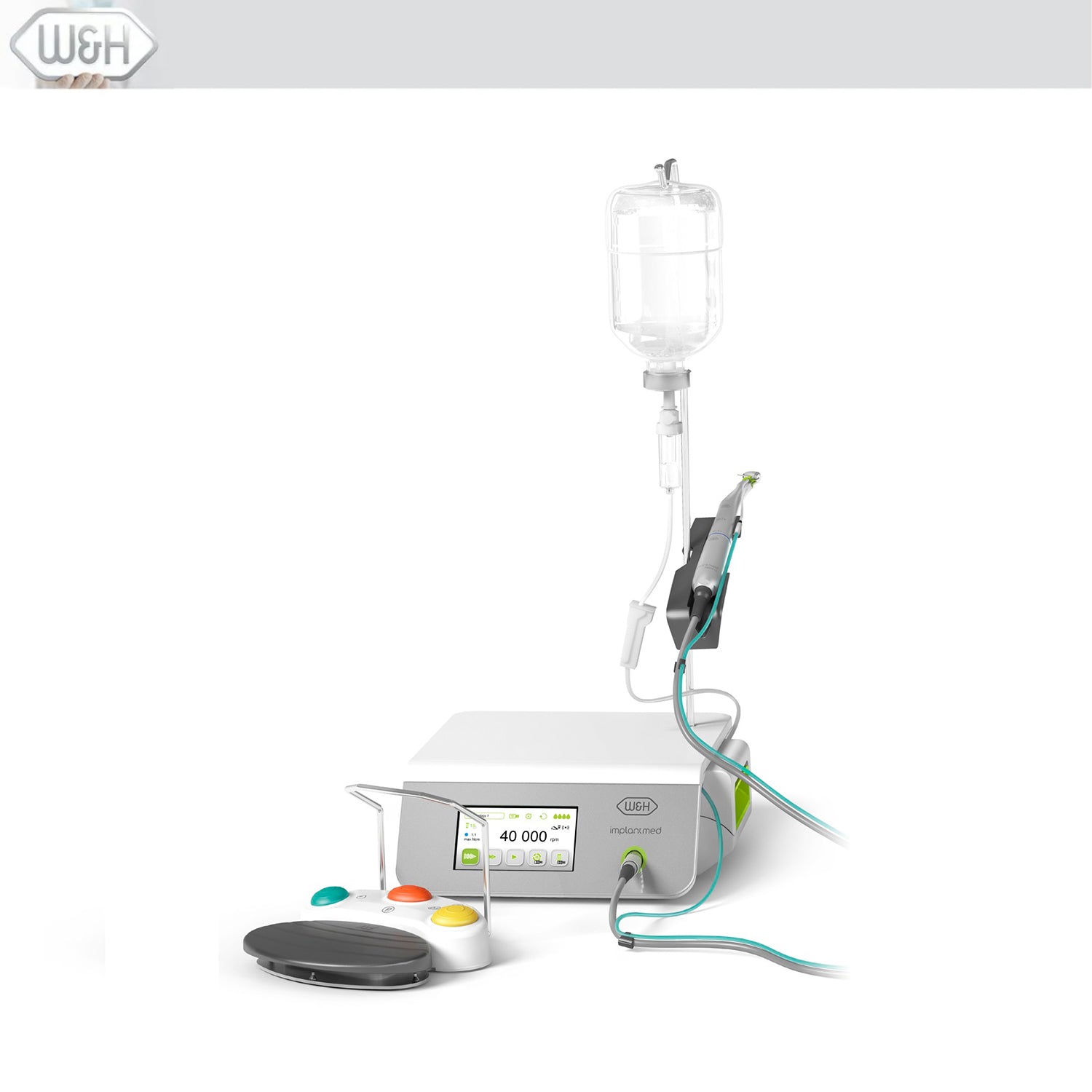

W&H Implantmed Plus LED physiodispenser — with optic contra-angle & wired pedal

Implant motor unit designed for dental implantology. Maximum mechanical output power: 80 W. Implantmed supports oral surgical procedures in implantology and maxillofacial surgery with high precision. Intuitive user interface, color touchscreen, and glass surface for design and comfort.

Advantages at a glance

• Intuitive user interface
• Safe torque control and measurable implant stability
• Ultra-short, powerful electric motor
• New pump design

Selected technical data (SI-1023 example)

• Mains voltage variants: 230 V / 120 V / 100 V
• Frequency: 50/60 Hz
• Max. power consumption: 170 VA
• Max. torque at motor: 6.2 Ncm
• Motor speed range: 200–40,000 rpm
• Coolant flow at 100%: min. 90 ml/min
• Dimensions (H × W × D): 100 × 262 × 291 mm
• Foot control: S-N2 / S-NW

Package: Implantmed Plus LED physiodispenser & optic contra-angle. Warranty: 12 months.
