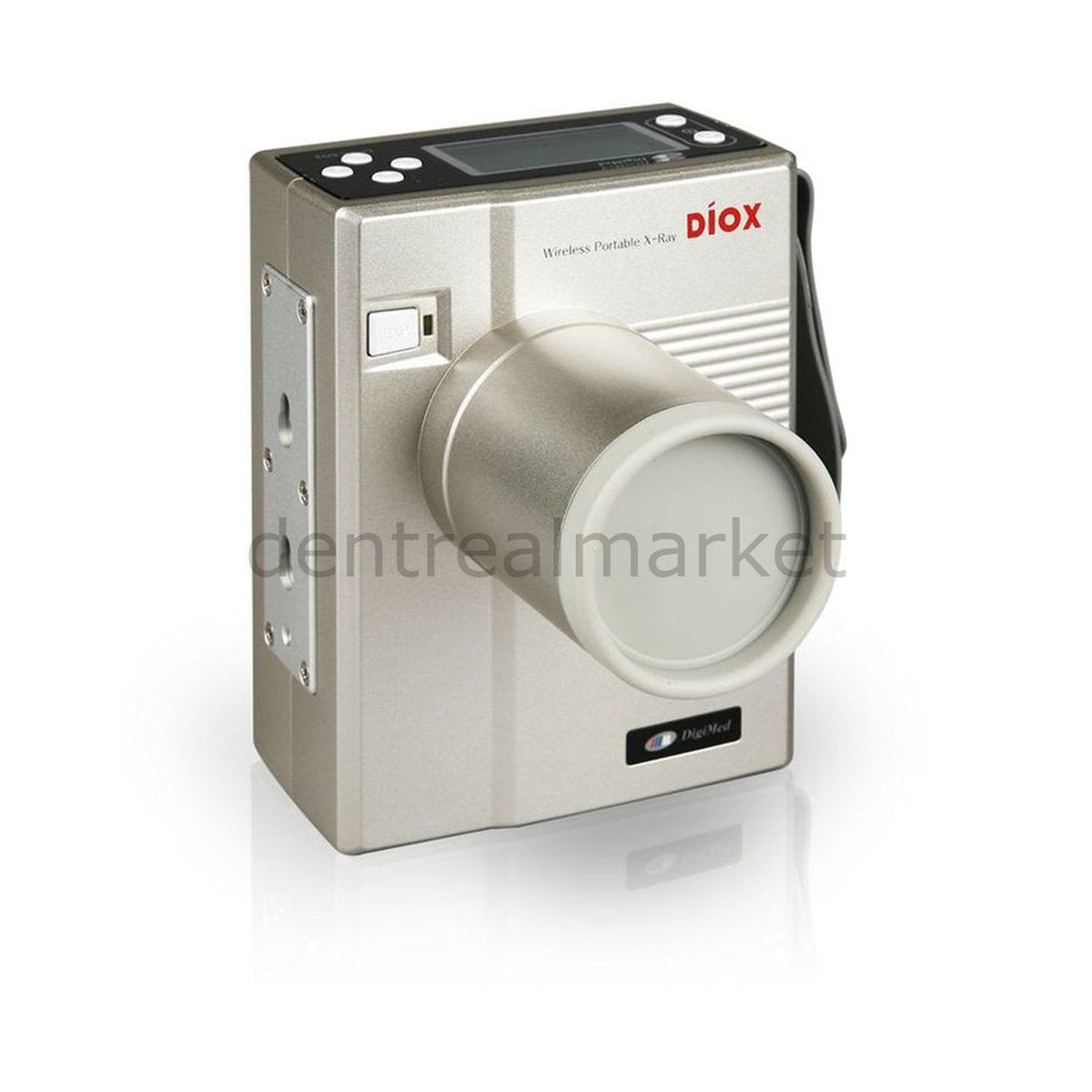

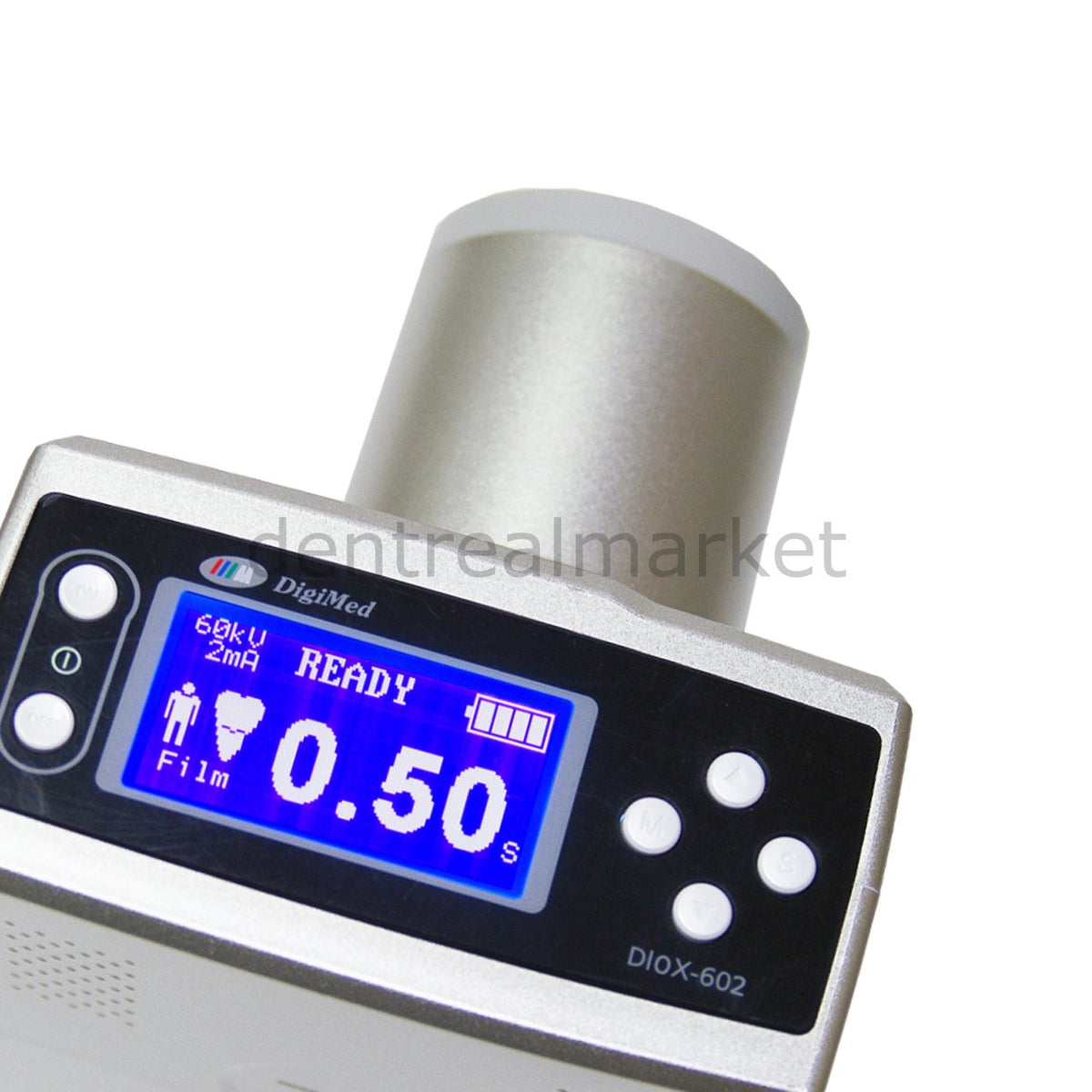

DIOX-602 portable X-ray system
DIOX-602 Portable X-ray System is known for durability and stability. With a user-friendly design, it offers a simple, slim form factor with strong functions. Long-lasting durability and stable performance have been proven by users worldwide.

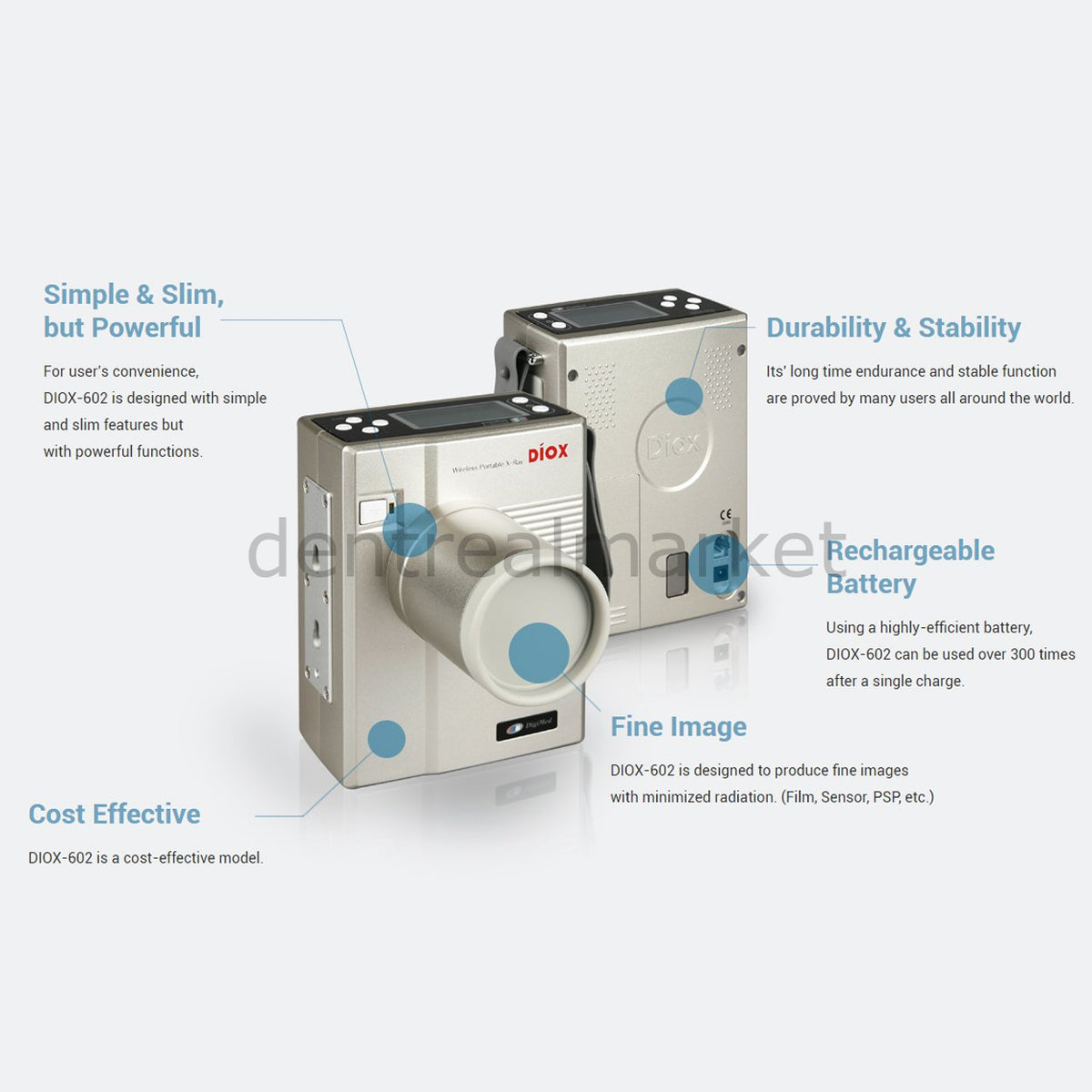

Key features
-
Efficient battery: More than 300 uses on a single charge.
-
Minimized radiation: Produces fine images while minimizing radiation exposure. Compatible with various imaging methods (film, sensor, PSP, etc.).
-
Cost-effective: High functionality at a suitable cost.
-
Wireless remote control: Compatible with a wireless remote for easier use.
-
Customizable stands: Compatible with wall mounts or portable stands.
-
Non-slip grip: Grip design with anti-slip tape for easier handling.
Technical specifications
-
Model name: DIOX-602
-
X-ray generator: DC high frequency
-
X-ray tube: Tube voltage 60 kV; tube current 2 mA
-
Anode: Type fixed; angle 20°; focal spot 0.8 mm; heat capacity 8.5 KHU
-
Exposure time setting: 0.01 ~ 1.60 seconds (0.01 s steps)
-
Total filtration: 1.6 mmAl
-
Source-to-skin distance (SSD): 100 mm / 200 mm (long cone)
-
Total weight: 1.8 kg
-
Dimensions: 135 mm (W) × 150 mm (D) × 175 mm (H)
Power requirements
-
Battery: DC 22.2 V
-
Charger: AC 100 ~ 240 V
